Blue Sea 8666 Contura 4 Bilge Pump Control Panel [8666]

In stock

Out Stock

Blue Sea 8666 Contura 4 Bilge Pump Control Panel [8666]

$276.99$154.95

Hurry! Only 3 Left in Stock!

PRODUCT INFORMATION

PRODUCT INFORMATION

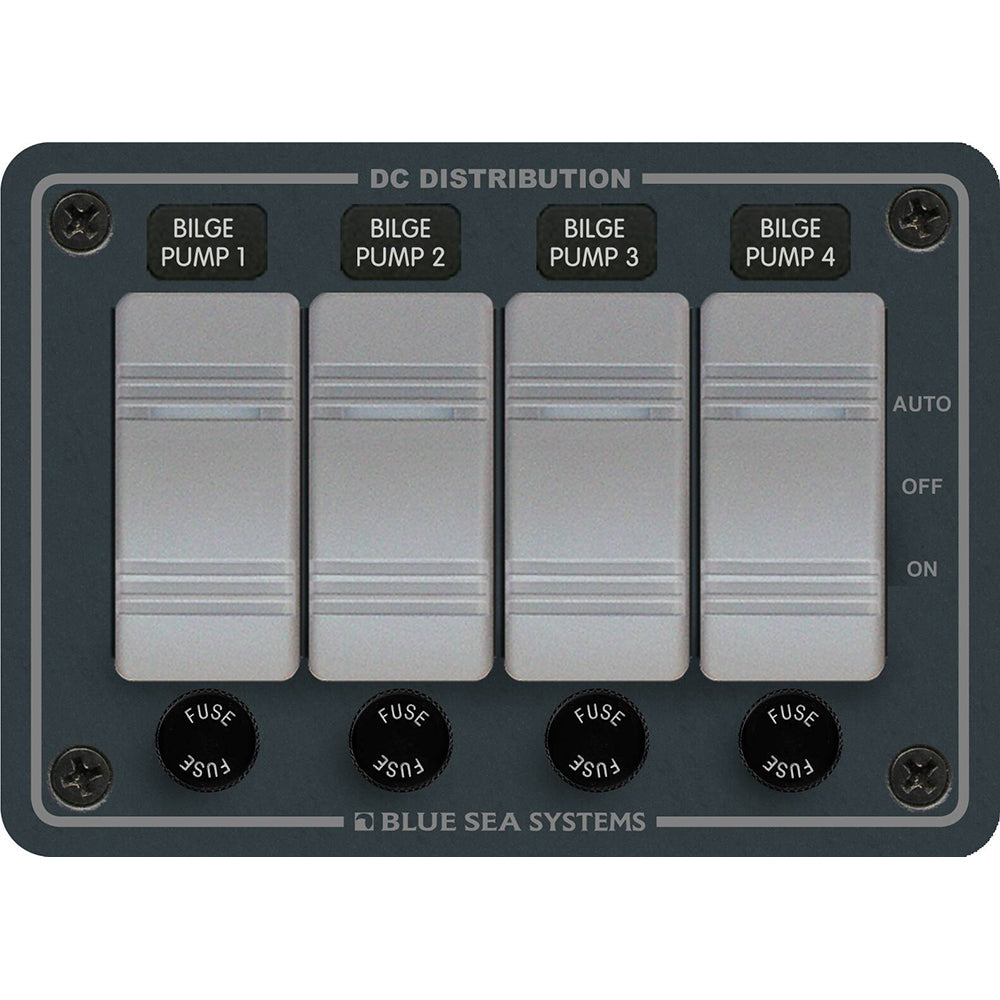

8666 Contura 4 Bilge Pump Control Panel

Blue Sea Systems water resistant 12/24 Volt DC Bilge Pump control panel with Contura rocker switch and fuse holder for fuses up to 20amp

Features:

Designed for 12 or 24V DC systems
ON - OFF - AUTO Contura Switch
Watertight mounting gasket
Fuse holders accept commonly available AGC and MDL glass fuses
"ON” LED embedded in switch indicates the pump is running
Completely wired and ready to install

Specifications:

Weatherproof - Water Resistant
No. of Bilge Pumps - four (4)
Nominal Voltage - 12/24V
Panel Cumulative Rating - 45A
Switch Rating: 20A @ 12V DC / 15A @ 24V DC
Dimensions (H x W x D) - 3.75" x 5.25" x 3"

In the Box:

Panel Mount AGC/MDL Fuse Holder (P/N 5021) x four (4)
Contura III Switch SPDT - On - OFF - (ON) (P/N 7944) x four (4)
Black 60 Label Set (P/N 8214)

*Sold as an Individual

Specifications:

Action: ON-OFF-AUTO
Color: Black/Grey
Throw/Pole: SPDT
Box Dimensions: 5"H x 7"W x 9"L WT: 0.75 lbs
UPC: 632085086664
